Powder Coated Twin Wire Fence PVC Mesh Fence Galvanized 8/6/8
Twin Wire Fence Description

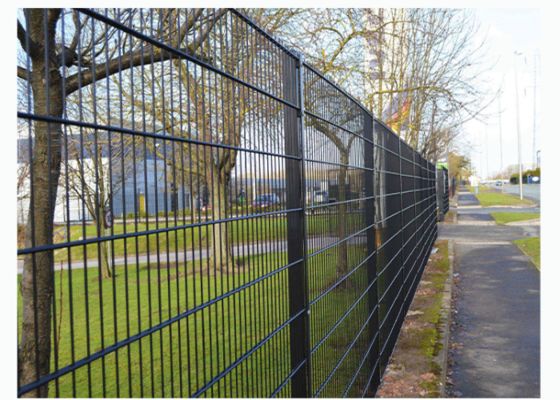

Double wire mesh fence is made of heavy welded mesh panels with double horizontal wires. This complete professional fencing system provides both extreme rigidity and security. It is recommended for professional fencing of schools, playgrounds, parks, sports grounds, public buildings, factories, workshops, airports and military sites.
Our double mesh fence can be customized according to your requirements, we have professional design team, and provide CAD drawing, 3D drawing and installation drawing for you.
We have advanced welded machines and advanced powder coated lines. The mesh panel welded by our machines is flat, and the solder joint are strong. The powder we used is Akzo Nobel powder. This coating is super durable and provides the industry's highest weather ability and Gloss Retention in U.V.exposure. Assured a long service lift for the fencing systems.
Twin Wire Fence Specification
|
Height
× Width Panel
mm
|
Mesh Size
mm
|
Wire Diameter
mm
|
Post of Height
mm |
|
|
630×2500
|
50×200
|
8×2 + 6 |
6×2 + 5 |
6×2 + 4 |
1100 |
|
830×2500
|
50×200
|
8×2 + 6 |
6×2 + 5 |
6×2 + 4 |
1300 |
|
1030×2500
|
50×200
|
8×2 + 6 |
6×2 + 5 |
6×2 + 4 |
1500 |
|
1230×2500
|
50×200
|
8×2 + 6 |
6×2 + 5 |
6×2 + 4 |
1700 |
|
1430×2500
|
50×200
|
8×2 + 6 |
6×2 + 5 |
6×2 + 4 |
1900 |
|
1630×2500
|
50×200
|
8×2 + 6 |
6×2 + 5 |
6×2 + 4 |
2100 |
|
1830×2500
|
50×200
|
8×2 + 6 |
6×2 + 5 |
6×2 + 4 |
2400 |
|
2030×2500
|
50×200
|
8×2 + 6 |
6×2 + 5 |
6×2 + 4 |
2600 |
|
2230×2500
|
50×200
|
8×2 + 6 |
6×2 + 5 |
6×2 + 4 |
2800 |
|
2430×2500
|
50×200
|
8×2 + 6 |
6×2 + 5 |
6×2 + 4 |
3000 |
|
Fence Post
|
Dimensions of Type
|
Square post/Rectangle post/Peach post/Round post
•60x60mm and 50x50mm SHS steel Post
•40x60mm RHS steel post
•50x70 and 70x100 Peach shape post
•48mm and 60mm Round section post
|
|
|

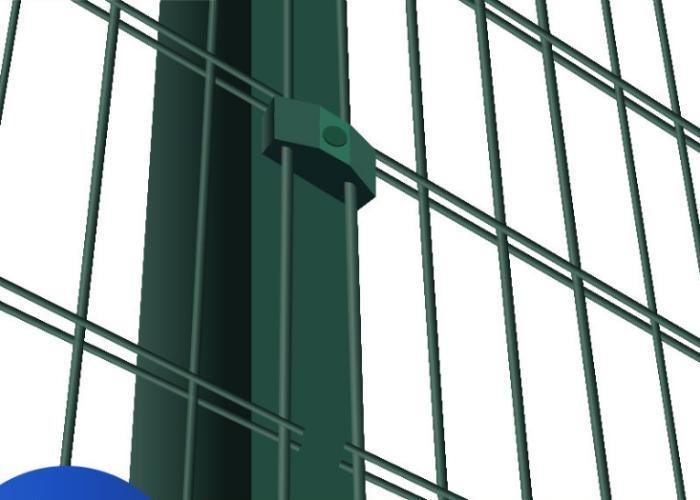

Clips/Clamps
|
Metal Clips and Plastic Clips
|
|
Rain hat or caps for posts
|
Metal caps or plastic caps
|
Twin Wire Fence Features
1. Attractive appearance
Different design from common fence, Round edges, Triangle edges and square edges make the fence more beautiful and elegant.
2. Built in rigidity
The rolled beam profile at the top and bottom edge of each panels results in maximum rigidity.
3. Longevity
The polyester coating is able to guarantee longevity. With different color can make the fence become markedly.
4.User friendly
Edge fence is easy to install and dismantle, Friendly top and bottom design, Safety and have low maintenance.
Twin Wire Fence Process
Twin Wire Fence Packing
<1>Plastic film at the bottom to avoid the panel be destroyed
<2>4 metal corners to ensure the panel strong and uniform
<3>wood plate at the top of pallet to keep the under panel
<4>pallet tube size:40*80mm tubes at the botom vertical position
